FLOATING CARRIAGE MICROMETER
Specification : This measuring machine is designed to have accurate measurements of major,minor & effecive diameter of precision screw threads as well as those of odd flutes screw taps. All guide ways and wearing parts are hardened and ground
Work piece :16.20mm | Prism :2 nos | Method : Two wire method
Product Code : SAMS MTR - 001
Send A EnquiryTORQUE MEASURING SETUP
Specification : This measuring machine is designed to have accurate measurements of major, minor & effecive diameter of precision screw threads as well
Torque Cell : 1 kg-m capacity
Loading : L angle and 1 m length fulcrum arm
Weights : 100gms x10 nos
Product Code : SAMS MTR - 002
Send A Enquiry
DISPLACEMENT MEASURING SETUP
Specification : ±10mm
Micrometer : ±0-25mm
Indicator : Digit to read upto 10mm
Product Code : SAMS MTR - 003
Send A EnquiryVIBRATION / SHOCK MEASURING SETUP
Specification : Magnification, Vibration Genereation, Capacity 5 Newton
Excitation Frequency : 50 Hz to 1 K HZ
Excitation Voltage : 0 to 10V P to P
Vibration Sensor : Piezoelectric type
Vibration Indicator : 3 ½ digit LCD display by selsection through selector switch
Product Code : SAMS MTR - 004
Send A Enquiry
FORCE VIBRATION TESTING
Load cell : 1kg capacity
weight : 100gms. x 10 nos
Indicator : 3½ digit display to read upto 1 kg
Resolution : 0.01 kg
Product Code : SAMS MTR - 005

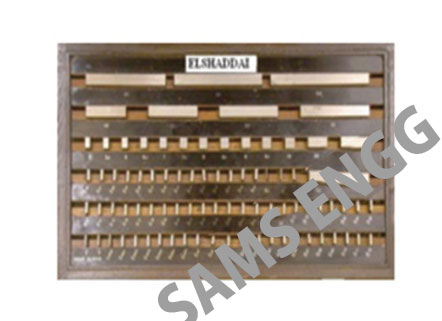

Send A EnquirySLIP GAUGE SET
Specification : 112 pieces AS per IS:2984-1966,slip gauges are available in three different grades i.e. grate O,grate I,and grate II.
Grate I-slip gauges are used in inspection department
Grate II-slip gauges are used in workshop
Grate 0-slip gauges are used in laboratories & standard rooms some available sets of slip gauges are-M112,M105,M50,M33,M27.M45,etc
Product Code : SAMS MTR - 006
Send A Enquiry

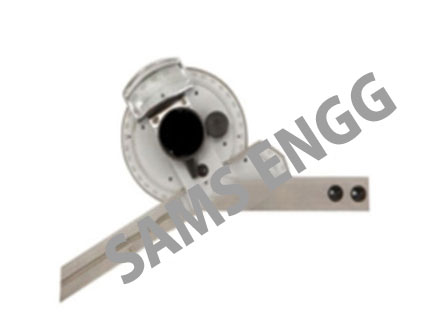

BEVEL PROTECTOR
Specification : Range - 360 Deg, LC:5Min, it is capable of measuring from 0 to 360°. the vernier scale has 24 divisions coinciding with 23 main scale divisions. thus the least cout of the instrument is 5.This instrument is most commonly used in workshops for angular measurments till more precision is required
Product Code : SAMS MTR - 007

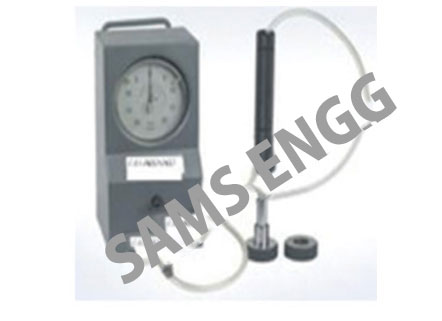

Send A EnquiryPNEUMATIC COMPARATOR
Accurate C-jet Dial Type Air Gauge Unit Range ±0.001mm.
Oil & Moisture removial filter set Unit, Outlet house, cock valve, pressure indicator.,
2jet Air Plug Gauge Dia. 10-20 through bore with setting rings.
Product Code : SAMS MTR - 008
Send A Enquiry

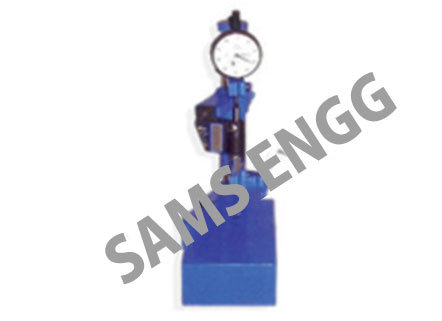

ELECTRICAL COMPARATOR
Specification : Operates on the principal of the Change of inductance of a coil by movement of a steel armature,which is moved by a plunger arrangement in contact with the surface to be checked. the plunger consists of Electrical Gauge Head with armature and feeler,Ammeter,Power Supply,with 2 amps x 2 Nos. dimmer & specimen Holder
Product Code : SAMS MTR - 009

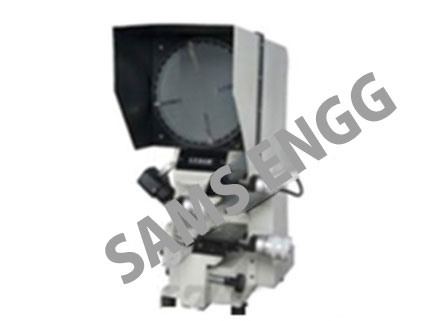

Send A EnquiryPROFILE PROJECTOR
Travel X-Y Movement:50x50mm(standard)
Travel Z(Up and Down):25 mm (Under 10x)
Travel Z(Up and Down):50mm (Under 20x50x$100x)
Micrometers (50mm Dia):25mm(L.c 0.005)
x-y Bed size : 150mm x 150mm Having both Countour (12v/100w) lamp and two surface (6v/20W)lamps
Product Code : SAMS MTR - 010
Send A Enquiry

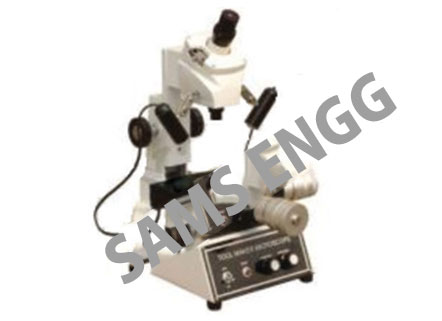

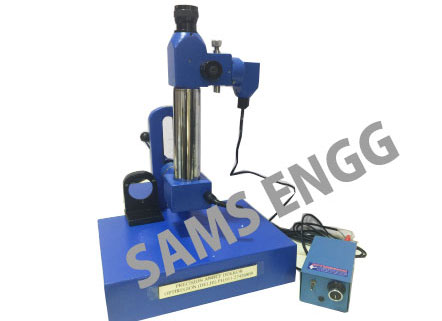

TOOL MAKER'S MICROSCOPE
Specification : Magnification:30 X with X-Y movement on ball bearingcslides
Micrometer:(50mm dia)L.C 0.01 with monometer Having both Transmitted and incident light in wooden box.
Product Code : SAMS MTR - 011

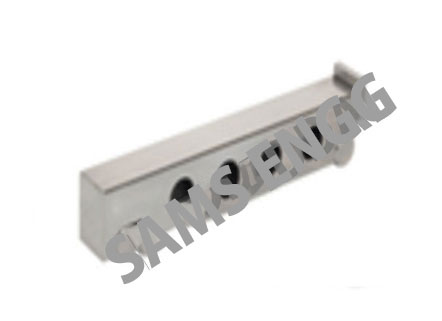

Send A EnquirySINE BAR
Specification : Range : 200mm and 300mm For concentricity checking, run out Sharpness Taper and degree checking
Product Code : SAMS MTR - 012
Send A Enquiry

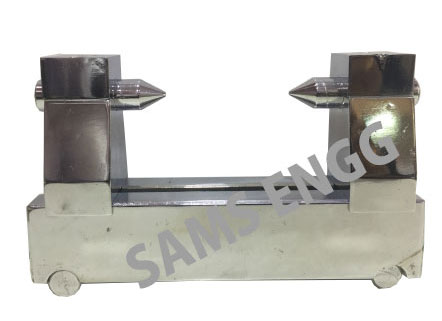

SINE CENTER
Specification : Range 100, 150mm, 208mm, 250mm & 300mm. for the inspection angle checking and taper checking
Product Code : SAMS MTR - 013

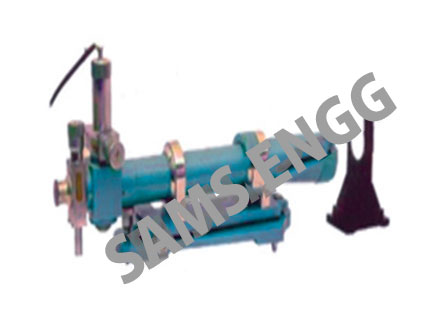

Send A EnquiryAUTOCOLLIMATOR
Specification : Telescope Length - 380 mm, Objective Focal Length - 300 mm, Eyepiece mangnification - 10x, Dimension of Base - 75x250mm, Measuring Range - 25'
Product Code : SAMS MTR - 014
Send A Enquiry

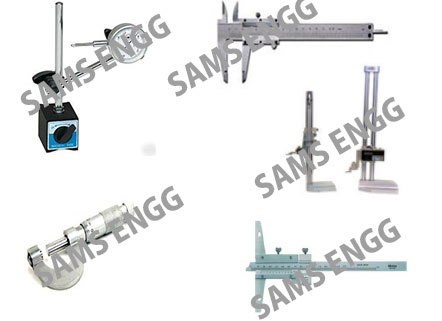

DIAL GAUGE
Specification : 0-10 mm 0.01 LC with magnetic base stand
Product Code : SAMS MTR - 015

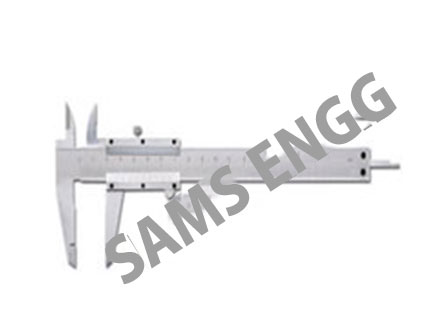

Send A EnquiryVERNIER CALIPER
Specification : Measuring range of 0-150mm/6", 200mm/8", 300mm/12", 600mm, 1000mm.
Vernier reading of 0.05mm/.001"
Product Code : SAMS MTR - 016
Send A Enquiry

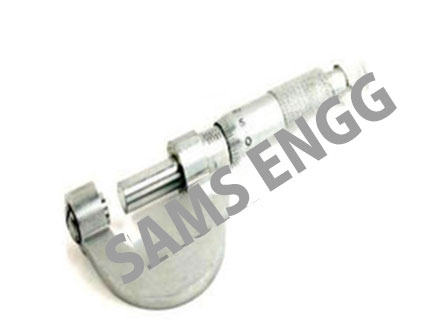

MICROMETER
Specification : Measuring range of 25-32mm, 25-50mm, 50-63mm, 50-200mm, 50-300mm, 200-225mm, 200-500mm, 200-1000mm.
Product Code : SAMS MTR - 017

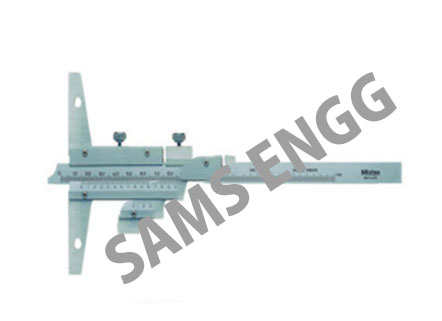

Send A EnquiryVERNIER DEPTH GAUGE
Specification : Measuring range of 0-150mm/6", 200mm/8", 300mm/12", 600mm, 1000mm
Product Code : SAMS MTR - 018
Send A Enquiry

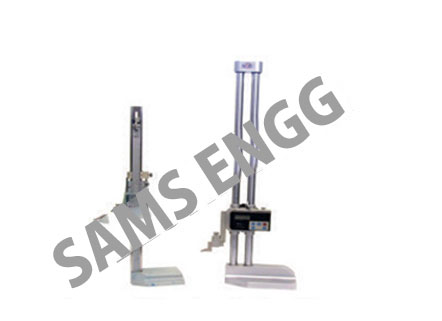

VERNIER HEIGHT GAUGE
Specification : Measuring range of 300/12", 450mm/18", 600mm/24", 1000mm/40".
Product Code : SAMS MTR - 019

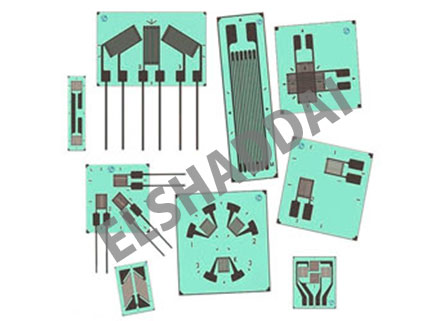

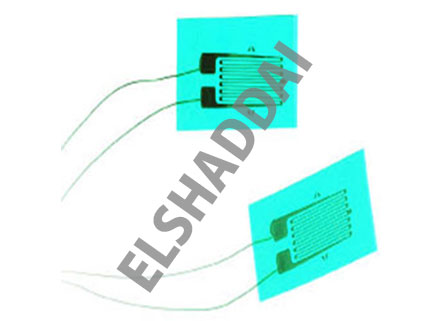

Send A EnquirySTRAIN GAUGES
Strain Gauges are designed in various configurations to suit varied industrial applications. These Strain Gauges are either foil type or semi-conductor type. These Strain Gauges are very suitable for single, dual and multi axial Strain Gaugesmeasurements. During the production, precision and accuracy are at high priority to ensure that the end products provides complete and highly accurate results. The Strain Gauges can be used to sensor changes in force, pressure, tension, weight, etc. The load cells provided with these Strain Gauges normally run longer than usual.
Product Code : SAMS MTR - 020
Send A Enquiry

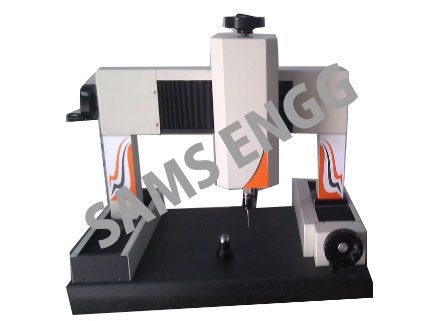

Coordinate Measuring Machine
Measuring Range : 200x200x200mm
Linear Accuracy U1 : 3+L/200µm
Maximum Weight : 60Kgs
Maximum Part Weight : 200mm
Product Code : SAMS MTR - 021

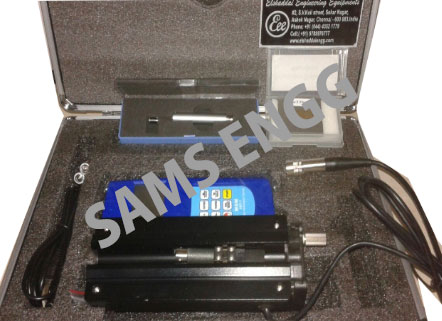

Send A EnquirySurface Roughness Tester
Roughness Parameters : Ra, Rz, RY, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSk, Rmr Primary profile
Profile recording magnification : Vv: 200x - 20000x Vh: 20x, 50x, 200x
Display resolution : 0.001 µ m / 0.04 µ inch
Product Code : SAMS MTR - 022
Send A Enquiry

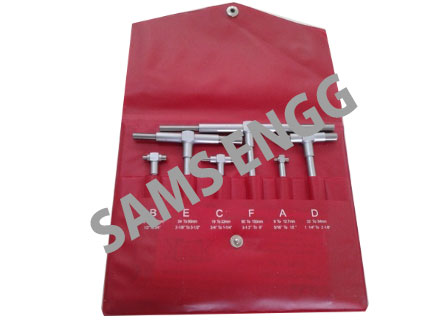

Telescopic Gauge
Range : (8 - 150mm) (6 Gauge Set)
(Set Content: 812.7mm, 12.719mm, 1932mm, 3254mm, 5490mm& 0150mm)
Product Code : SAMS MTR - 023
Send A EnquiryBORE GAUGE
A dial bore gauge is a special tool, calibrated in .001 inch (.0025 centimeter) or .0001 inch (.00025 centimeter), which is used to accurately measure the inside diameter of a hole, cylinder or pipe. In conjunction with a micrometer, a bore gauge will give you the exact reading of a bore size
Product Code : SAMS MTR - 022
Send A Enquiry
MEASURING INSTRUMENTS
Range : (8 - 150mm) (6 Gauge Set)
(Set Content: 812.7mm, 12.719mm, 1932mm, 3254mm, 5490mm& 0150mm)
Product Code : SAMS MTR - 023
Send A EnquiryDisplacement Measurement Trainer Module – LVDT
DMM Comprises of LVDT with micrometer jig fitted on the base plate to give displacement to the core of LVDT. Digital 31/2 digit indicator is supplied to read the displacement in mm.
Product Code : SAMS MTR - 022
Send A Enquiry
MICHELSON INTERFEROMETER
The Michelson interferometer is a common configuration for optical interferometry using a beam splitter, a light source is split into two arms. Each of those light beams is reflected back toward the beam splitter which then combines their amplitudes using the superposition principle
The Michelson Interferometer is a superb instrument for measuring the optical properties of a medium.
E.g. refractive index, phase shifts, visualization of interference
Specifications:-
Michelson Interferometer based on Model developed by Hilger & Watts (London)It is divided into two parts.
(1) Mechanical
(2) Optical Mechanical part consists of following items
a) Bed: Bed is optically ground, Length 250mm
b) Lead Screw: Lead screw is optically ground with its nut, length 200 mm Pitch 1 mm
c) Optical Mirror Mount: Kinematic mirror mounts are to hold the mirror which be aligned in to orthogonal direction by means of screws provided at the rare of the mount.
Optical Parts consist of the following items:
a) Beam Splitter
b) Compensating plate
Size 45mm× 32mm × 8mm 50mm× 35mm × 8mm
Beam splitter and compensating plates are covered from the same optically worked glass plate
Surface flatness : λ/10 (both faces)
Parallelism : 5 arc sec.
Mirrors : 2Nos.
Focal Length : 25mm thickness 10mm
Front surface : Coating material : Coated AI with SiO2
L.C. of Instrument :10¯4mm
Product Code : ELSHADDAI MTR - 025
