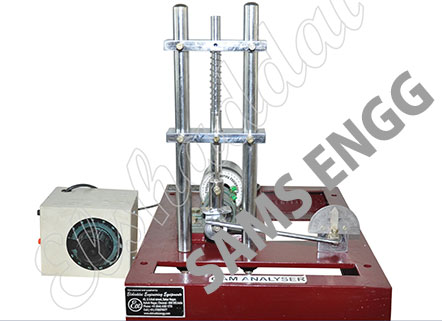

CAM ANALYSER

The apparatus is designed to study the cam profiles and performance of cam and follower system. A shaft supported by ball bearings upon which three different types of cams can be mounted.

Product Code : SAMS DYN - 001

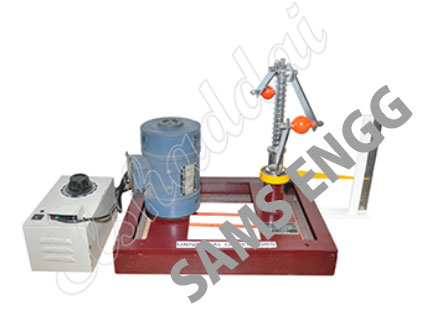

GOVERNOR

To study the determination of characteristics curves of radius of rotation against controlling force (Actual & Theoretical) for all governors. The set-up is designed to study the working of different governors normally used to control the speed. It consists of a main spindle, mounted vertically on the base plate.

Product Code : SAMS DYN - 003

STATIC AND DYNAMIC BALANCING MACHINE

This equipment is designed for carrying out the experiment for balancing a rotation mass system. The apparatus consists of four circular discs mounted on a shaft. The discs are grooved for the attachment of weights at a specific radius. The block are clamped on shaft is rotated by a motor to check dynamic balance of the system.

Product Code : SAMS DYN - 005

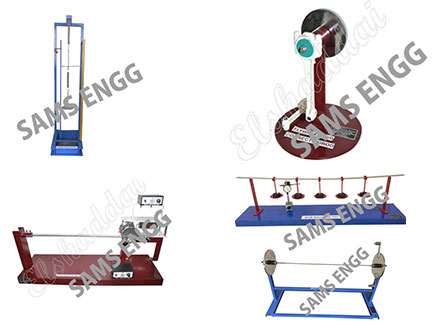

VIBRATION TEST FACILITIES APPARATUS

The apparatus is designed to help in conducting various experiments to illustrate and verify the principles and relations involved in the study of vibrations. Following experiments can be performed with this unit.

Product Code : SAMS DYN - 007

DYNAMIC BALANCING MACHINE

Weight : 2-10kg,
Max. Distance Between Bearing: 500mm,
Balancing Speed Range (N)600-3000rpm,
Shaft Diameter5-50mm,
Power Of Drive Motor 0.33hp ,
Acceleration Capacity Gd2 N20.40x106 Kgm2n2,
Max. Unbalance Mass Read At 100% Of Meter Scale:30gm

Product Code : SAMS DYN - 009

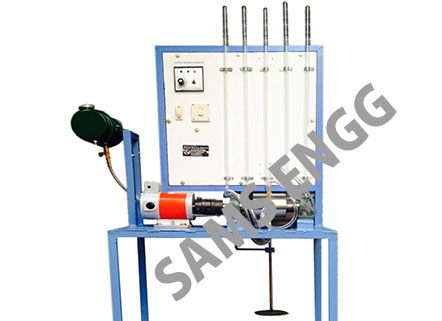

JOURNAL BEARING APPARATUS

EEE Journal Bearing apparatus for investigating the distribution of pressure in slide bearings illustrates the principle of hydrodynamic lubrication. The distribution of pressure and the carrying capacity can be determined on a sliding bearing model at different bearing loads and speeds. The sliding bearing consists of a bearing journal driven by an electrical motor and the freely moving bearing housing. The bearing is loaded with different, interchangeable weights. The setup contains manometer tubes, dc motor, dc drive to control speed, set of weights, oil tank, Journal bearing along with the shaft.

Product Code : SAMS DYN - 011

BEVEL GEAR

Either of a pair of gears with teeth surfaces cut so that they can connect unparallel gear shafts. (Mechanical Engineering) a gear having teeth cut into a conical surface known as the pitch zone. Two such gears mesh together totransmit power between two shafts at an angle to each other

Product Code : SAMS DYN - 013

DIFFERENTIAL GEAR

An arrangement of gears in an epicyclic train permitting the rotation of two shafts at different speeds, used on the rear axle ofautomotive vehicles to allow different rates of wheel rotation on curves. An arrangement of gears in an epicyclic train permitting the rotation of two shafts at different speeds, used on the rear axle ofautomotive vehicles to allow different rates of wheel rotation on curves.

Product Code : SAMS DYN - 015

COMPOUND GEAR TRAIN

Compound gear trains involve several pairs of meshing gears. They are used where large speed changes are required or to get different outputs moving at different speed

Product Code : SAMS DYN - 017

Epicycle gear Train Apparatus

Gear Train is any combination of gear wheels by which motion is transmitted from one shaft to another shaft. In epicyclic gear trains, the axes of shafts on which the gears are mounted may move relative to a fixed axis.

Product Code : SAMS DYN - 019

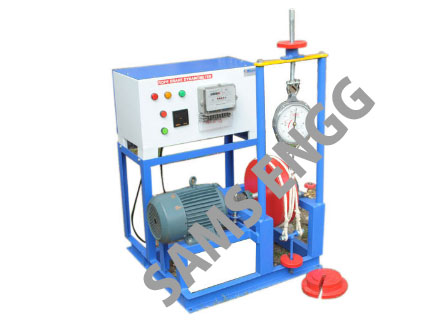

ROPE BRAKE DYNAMOMETER

 230 V Single Phase
 Rope Brake Drum Assembly
 Digital R.P.M. Indicator
 Energy meter, Voltmeter, Ammeter to measure input power of motor

Product Code : SAMS DYN - 022

Slip & Creep Measurement Apparatus in Belt Drive

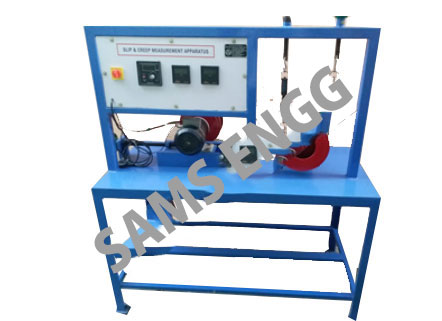

This apparatus is useful for measurement of power transmitted for various input power conditions with varied belt tension. Belt slip or creep also can be measured. The apparatus consists of a variable speed D.C. Motor, driving pulley and driven pulley of equal diameters. The pulleys are mounted on input shaft (motor shaft) and output shaft. The driven pulley can slide on the base only with bearing block to change the initial tension in belt

Product Code : SAMS DYN - 024

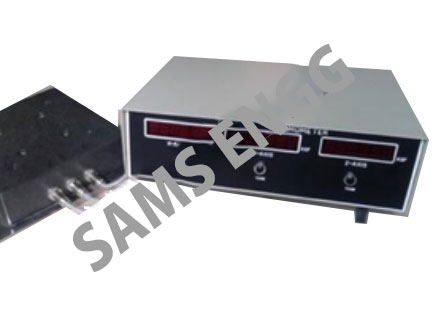

Drill Tool Dynamometer

SAMS Tool dynamometers to measure cutting forces on various machines like lathe, drill, milling machines. All three direction forces are measured simultaneously and displayed

Product Code : SAMS DYN - 026

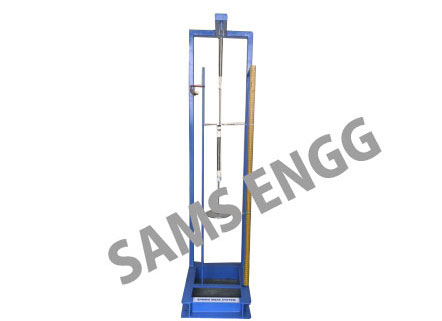

Spring Mass System

The apparatus is designed to help in conducting various experiments to illustrate and verify the principles and relations involved in the study of vibrations. Following experiments can be performed with this unit.

Product Code : SAMS DYN - 028

Transverse Vibration Setup

The apparatus is designed to help in conducting various experiments to illustrate and verify the principles and relations involved in the study of vibrations. Following experiments can be performed with this unit.

Product Code : SAMS DYN - 030

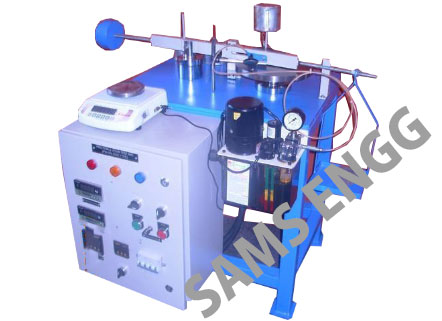

Friction and were test rig

It is essential to decide the wear rate at design stage, in doing so it is necessary to develop such an equipment which will serve the purpose of material testing. The purpose of friction and wear test

Product Code : SAMS DYN - 032

Transverse Vibration Set Up

Frame Size:1200X450

2 channel 500mm length

Scale fitting movable

Product Code : SAMS DYN - 034

Single and Two Rotor System

To determine the natural frequency of undamped torsional vibration of a single rotor shaft system. When the particles of the shaft or disc move in a circle about the axis of the shaft, then the vibrations are known as torsional vibrations. The shaft is twisted and untwisted alternatively and the torsional shear stresses are induced in the shaft.

Product Code : SAMS DYN - 036

Dynamic Balancing Of Reciprocating Masses

Dimension 300 x 250 x 400 mm the entire system is mounted on a heavy duty frame which is embedded with multi springs to absorb the shock generated while reciprocation is in action with reciprocating system duly fixed on the frame and driven through dc motor with variable rpm level and duly indicated through the digital rpm monitor.

Product Code : SAMS DYN - 038

Forced vibration analysis (Spring Mass System Motorised)

A system is said to be a cantilever beam system if one end of the system is rigidly fixed to a support and the other end is free to move. Few Examples of Real life systems which can be approximated to Cantilever Beam are shown. Single degree of freedom mass spring damper system under free vibration is governed by the following differential equation

Product Code : SAMS DYN - 038
